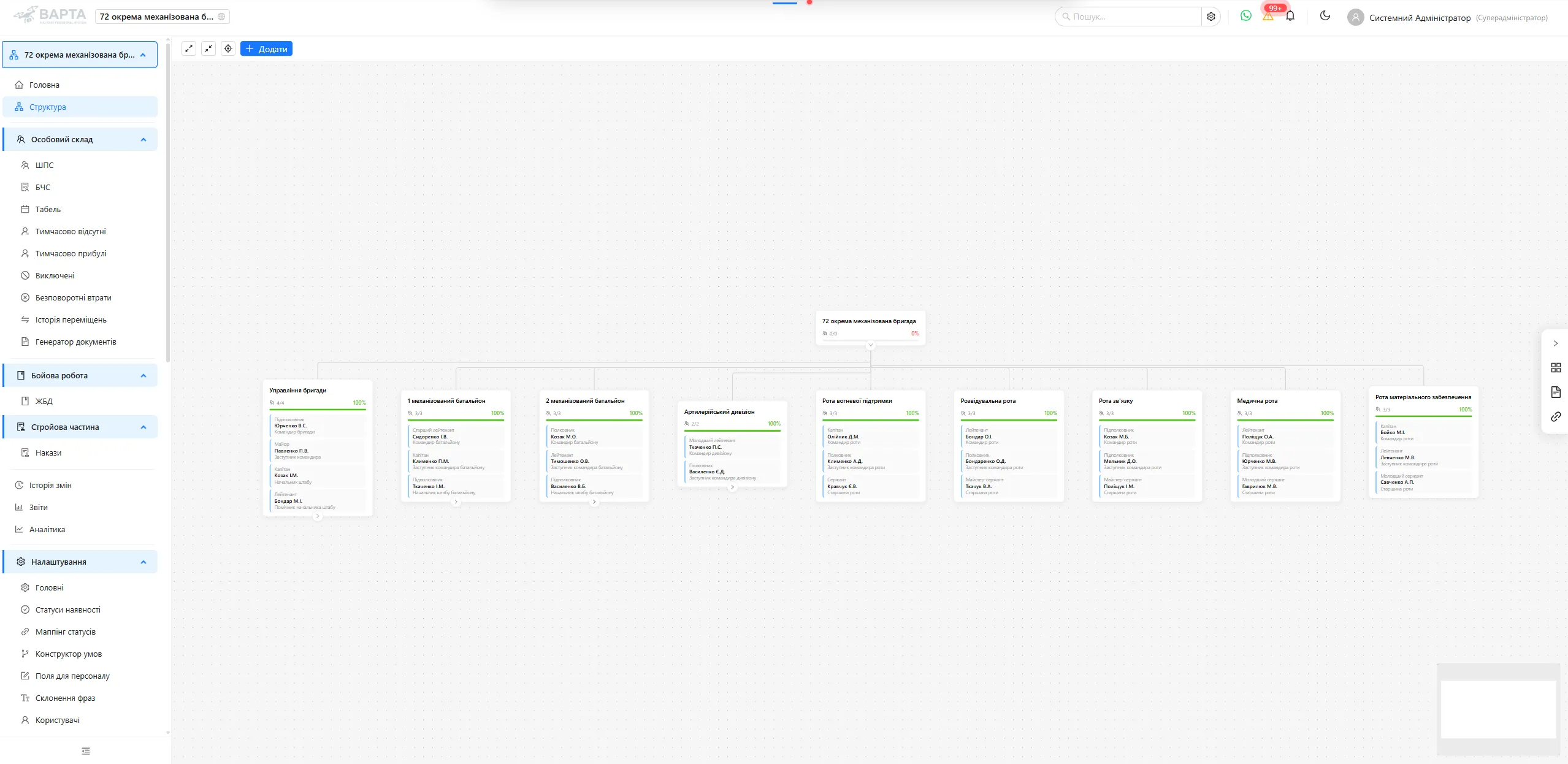

Organizational Structure
Flexible unit tree of unlimited depth (django-mptt). Interactive org chart (React Flow + Dagre auto-layout). Positional model: "slots" (positions) exist independently of people – vacancies, staffing table, career history.
Case · 01 / 15
Armed Forces of Ukraine
HRM Personnel Management System
Full-featured HRM system for organizational personnel management
This project was developed for a government organization. All personal data shown in screenshots is fictitious and used solely to demonstrate the interface. Any resemblance to real persons is coincidental.
About Product
Full-featured <a href="/en/hrm-systems">HRM system</a> (Human Resource Management) for a brigade-level military unit of the Armed Forces of Ukraine. The system fully replaced paper-based records and legacy solutions, providing real-time personnel tracking.
Full-cycle development – from DB architecture to production deployment. 11 Django apps, 12 frontend modules, ~80 API ViewSets.
~93KLines of Code
452Files
17Modules
80+API ViewSets
System Interface
Below are screenshots of the key system modules with test data. Actual personnel data is confidential and subject to non-disclosure.
Staff & Position Structure (ShPS)

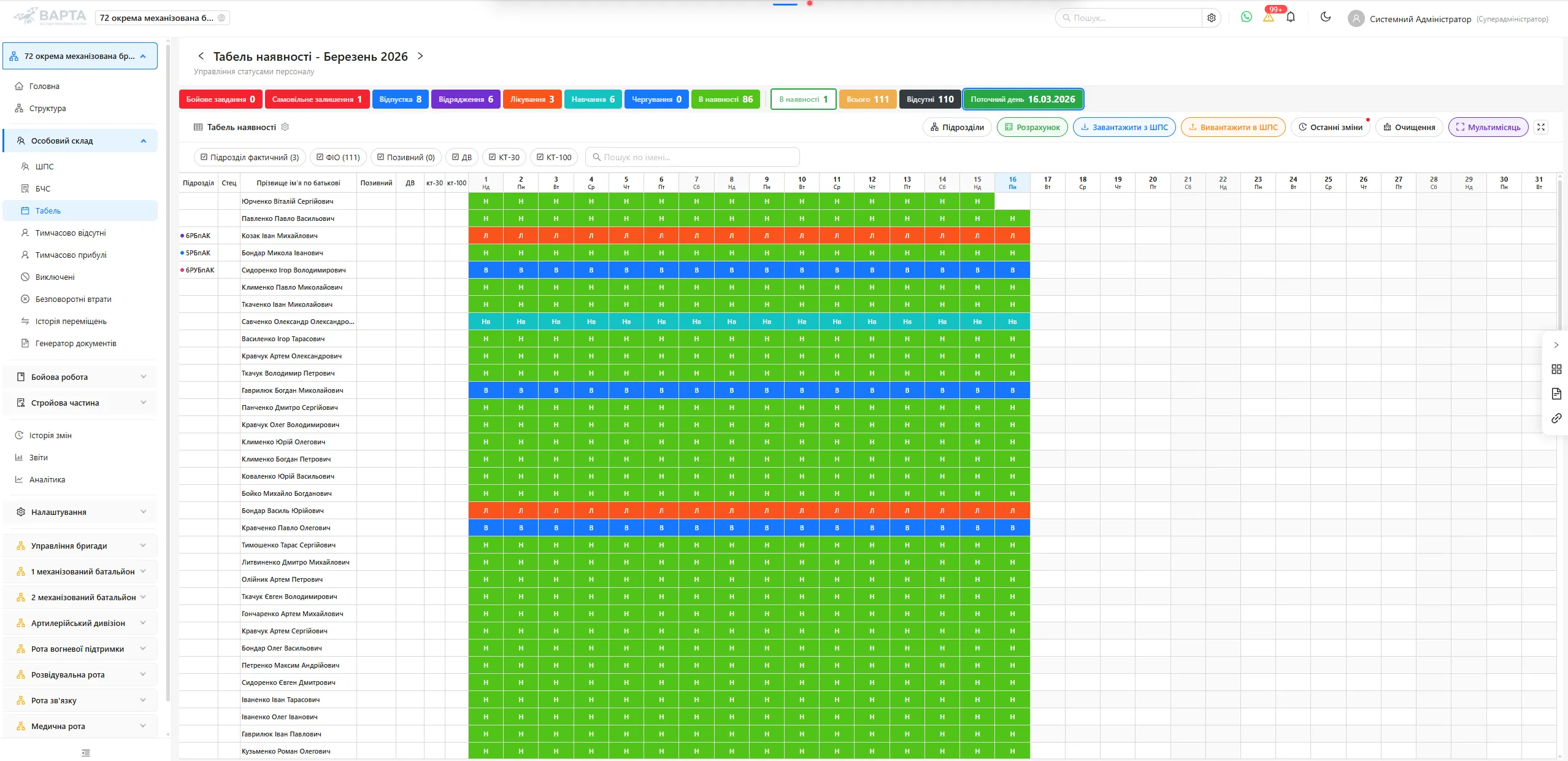

Attendance Timetable

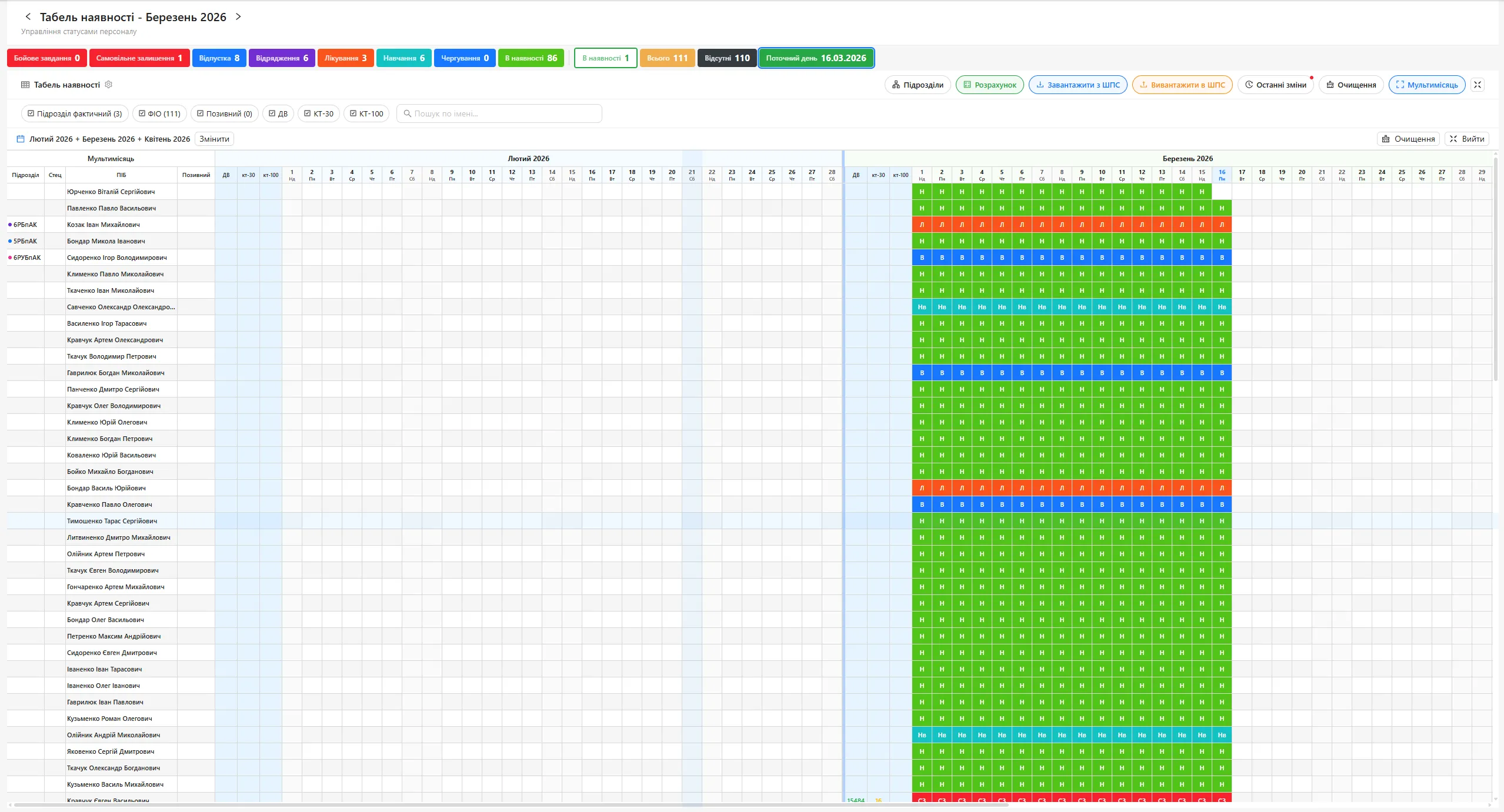

Multi-Month Timetable
Organizational Structure

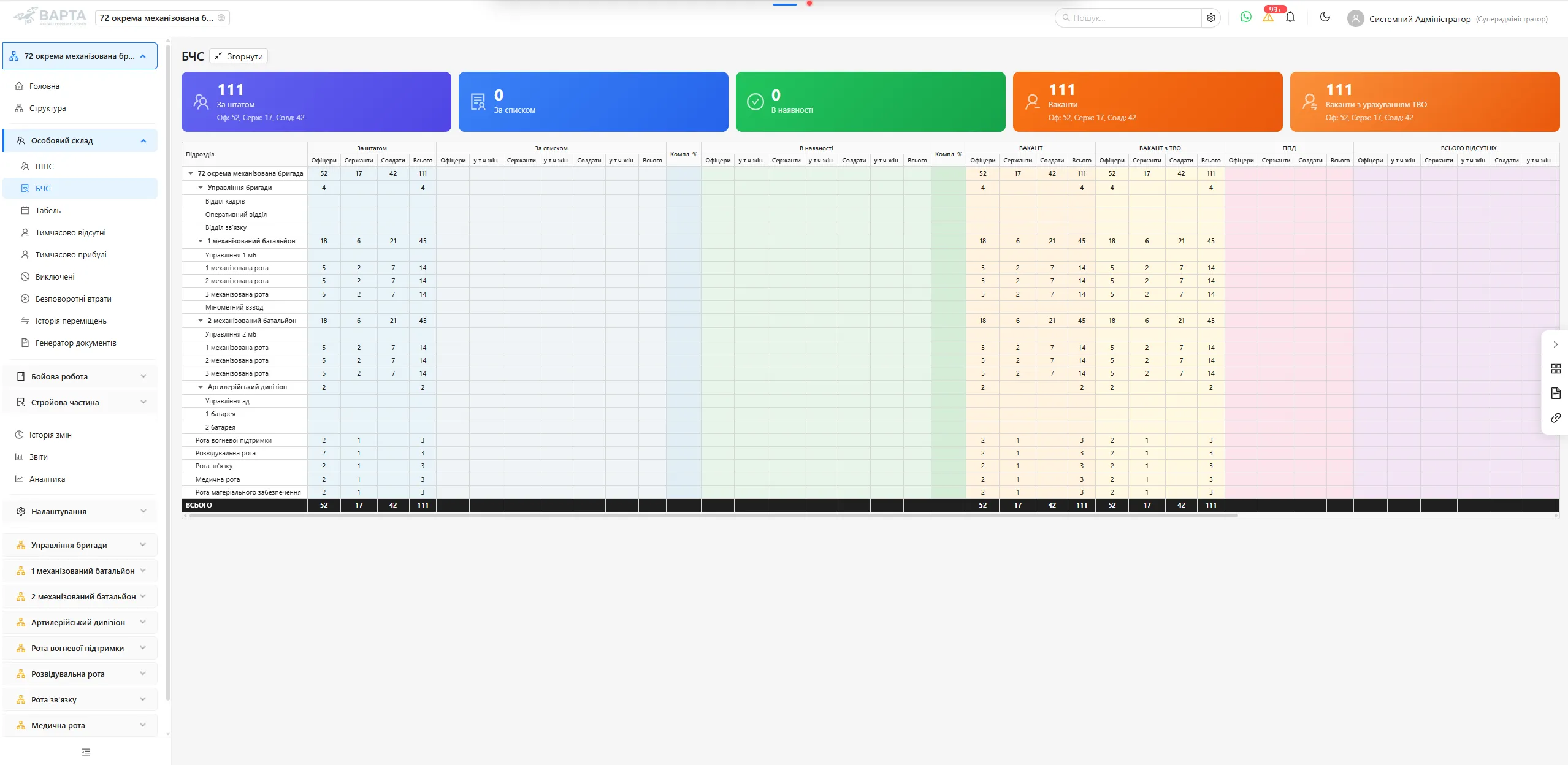

Combat & Numerical Strength (BCS)

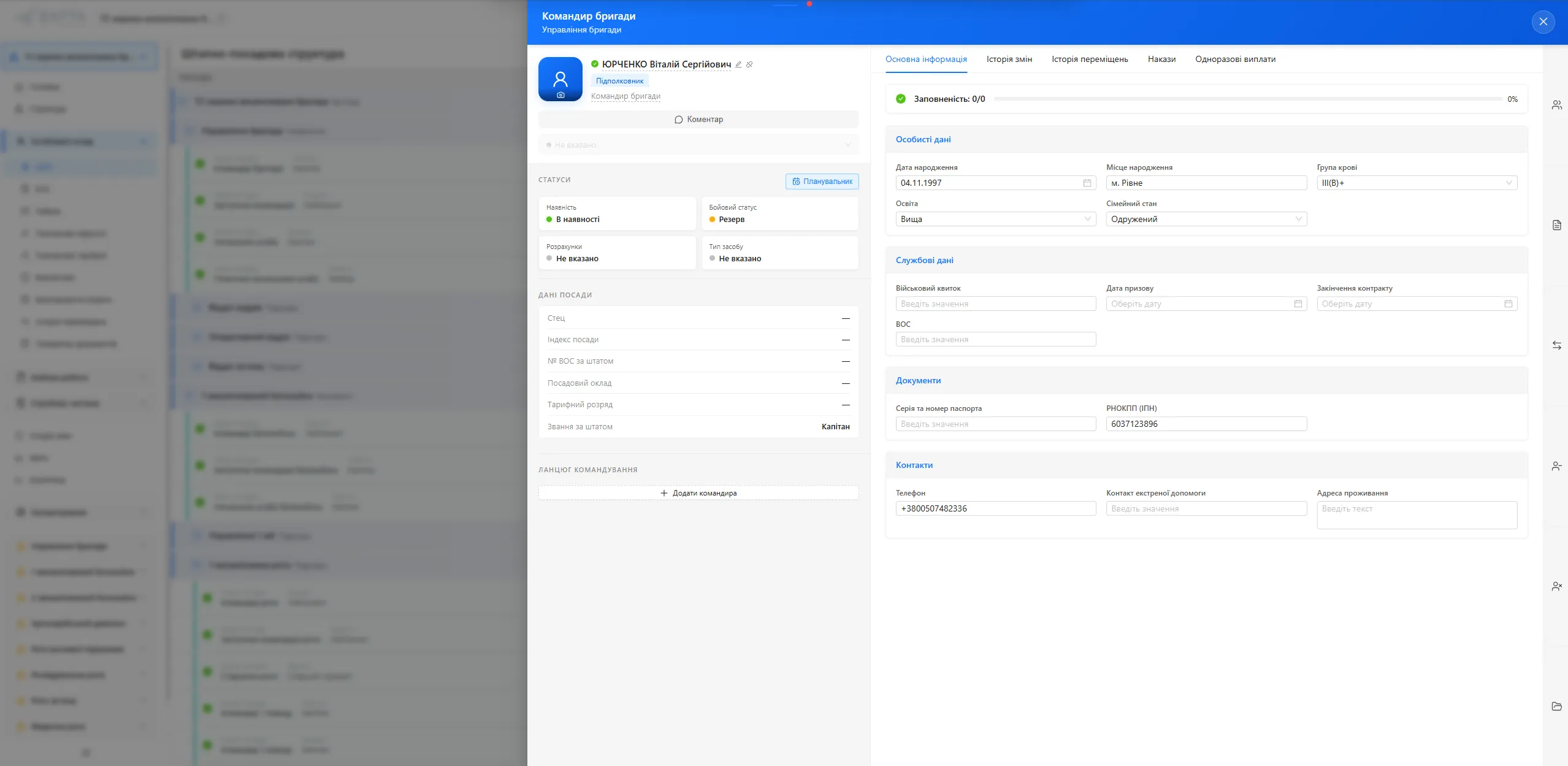

Personnel Card

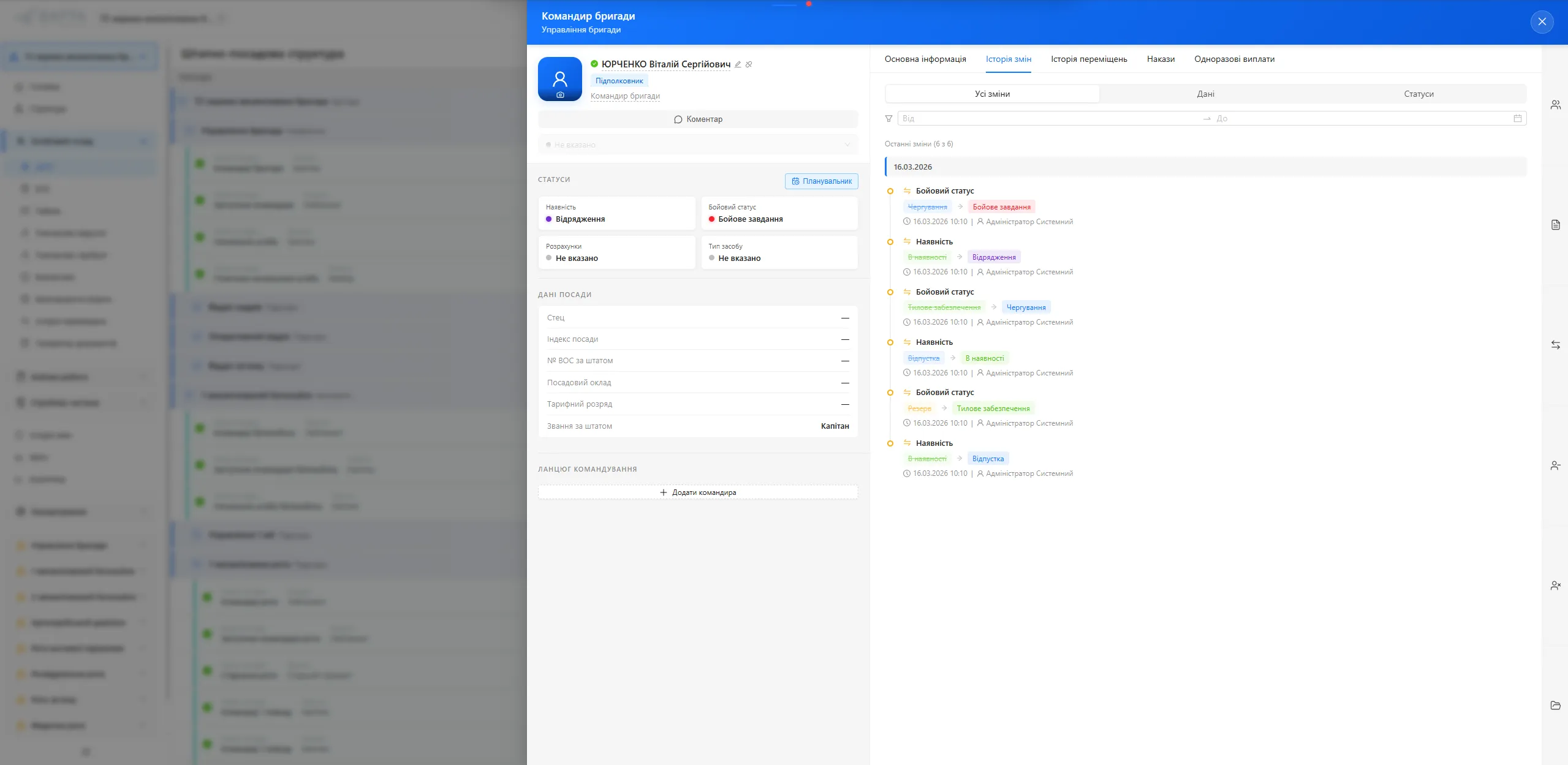

Change History

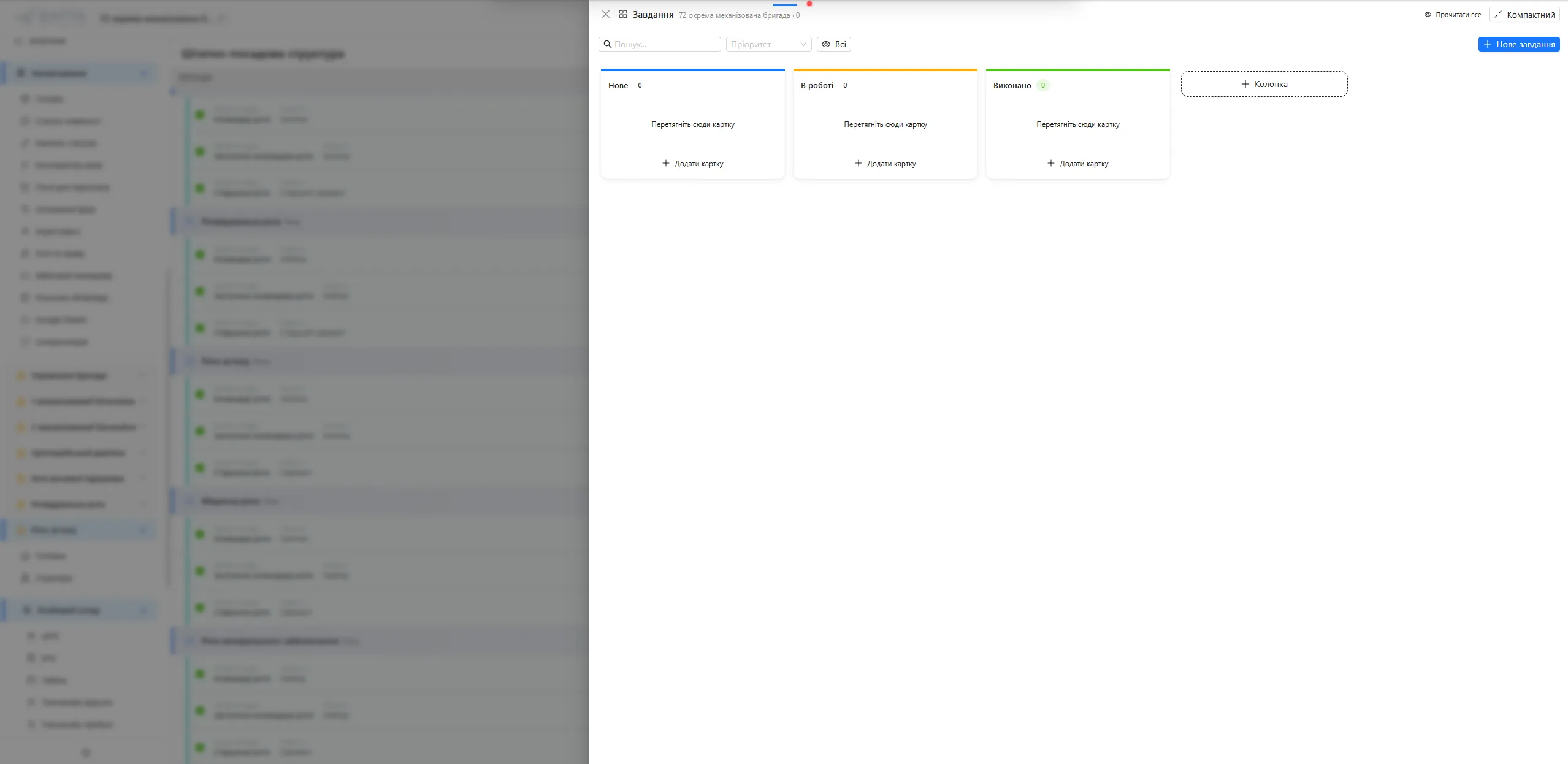

Kanban Task Board

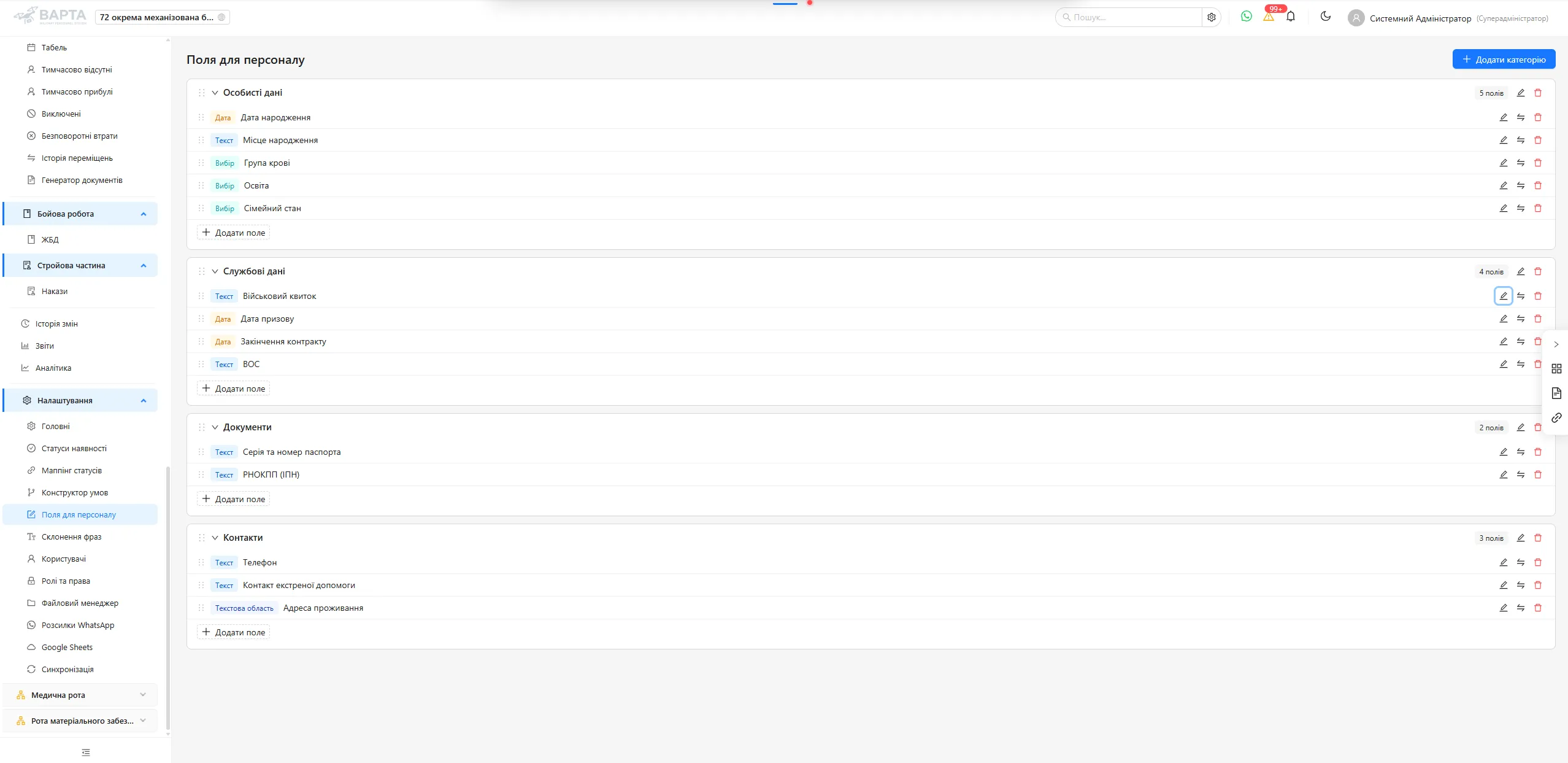

Custom Fields Constructor

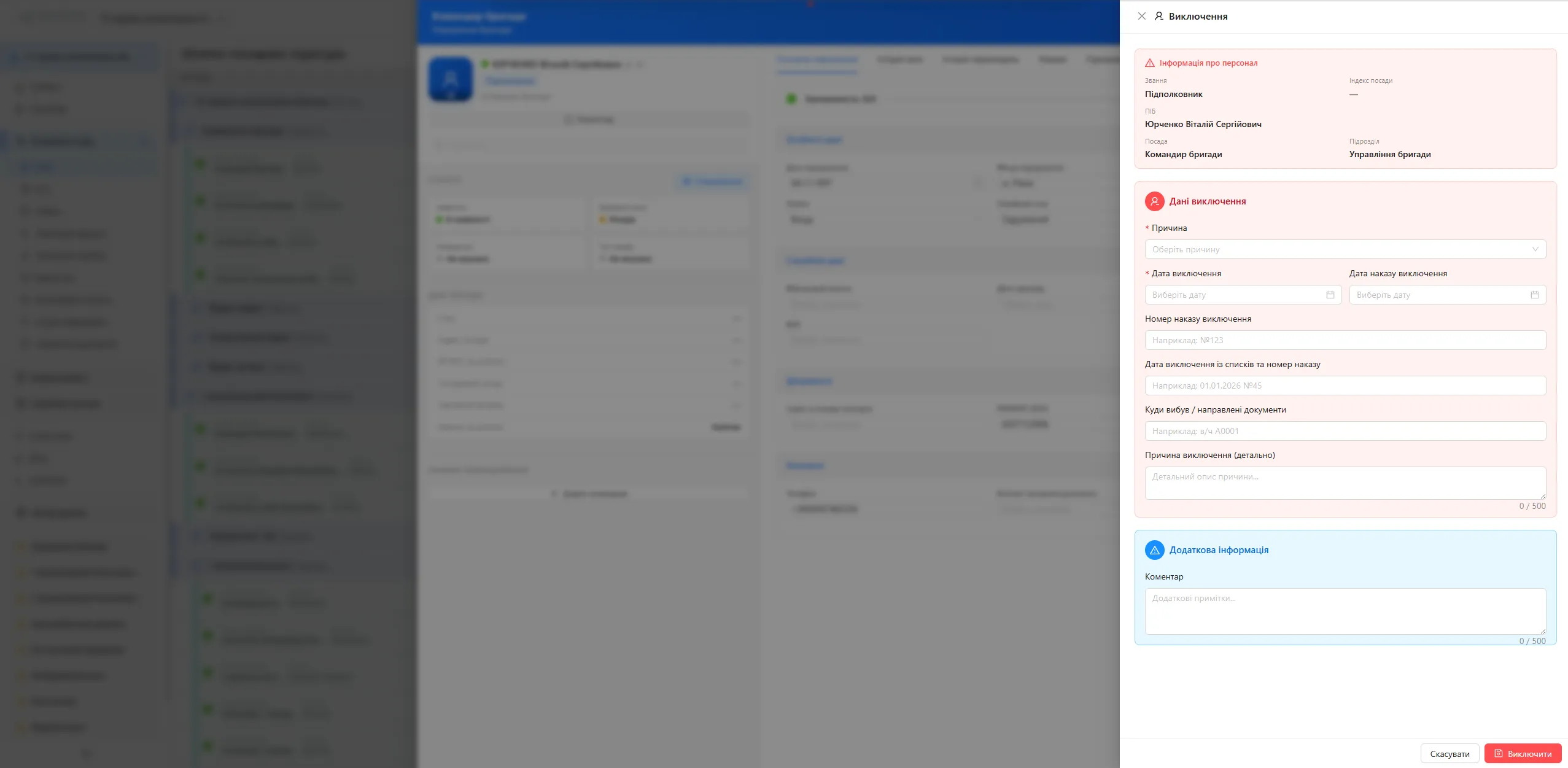

Personnel Exclusion
Position Transfer
Technology Stack
Backend
Python 3.12, Django 6 + DRF, Django Channels, Uvicorn (ASGI), PostgreSQL 16, Redis
Frontend
React 19, TypeScript (strict), Vite, Ant Design 5, TanStack React Query, React Flow, Recharts
Infrastructure
Nginx (reverse proxy + static), systemd, Let's Encrypt SSL, WebSocket (Django Channels + Redis)
Integrations
WhatsApp bot (Node.js), Google Sheets API (OAuth 2.0), DOCX document generation (python-docx)
Key Modules & Solutions
Personnel Management
Employee card with fixed + dynamic fields (EAV constructor via UI). Multi-block status system with cascading rules. Full career history: assignments, transfers, promotions, temporary duties, deployments. Soft deletion – records are never deleted, only archived.
Timetable
Employee × days matrix with virtual scrolling. Mapping: status combinations → timetable symbol (configurable via UI). Three data sources: auto-fill, absence panel, manual input. Audit log for every cell change.
RBAC & Data Security
~30 granular permissions, dynamic roles via UI. 3-level data isolation: Django ORM (.for_user()), Middleware checks every API response, PostgreSQL RLS (Row-Level Security) as the last line of defense.
Document Generation
DOCX templates with placeholders → auto-fill data from DB. Batch generation for multiple people. 6 document types: vacations, business trips, medical, position handover, etc.
Reports & Integrations
Daily text report. Complex Excel export with formatting (openpyxl). Report builder (drag-and-drop). Google Sheets integration (OAuth 2.0, bidirectional sync). WhatsApp bot for mass messaging and automated notifications.
Real-time & Performance
WebSocket via Django Channels + Redis. Virtual scrolling for 500+ element lists. Server-side pagination, filtering, sorting. Monthly partitioning for high-load tables. Code splitting (React.lazy + Suspense).
Admin Panel
Online user monitoring. Server statistics (CPU, RAM, disk). Backup management (manual + automatic). System notifications, maintenance mode lockdown.
Architecture & Security
Headless architecture: Django serves exclusively as an API backend (no Django Admin, no templates). React SPA communicates via HTTPS and WebSocket. Three levels of data isolation guarantee that no user can access data outside their unit – even through raw SQL.
Frontend
React 19 SPATypeScript (strict)Ant DesignReact Query
HTTPS / WebSocket
Nginx
/api/* → Django/ws/* → Channels/* → Static SPA
Backend
Django 6 + DRFUvicorn (ASGI)Django ChannelsWhatsApp Bot
Data Layer
PostgreSQL 16 + RLSRedis
3 Levels of Data Isolation
1
Django ORM
Custom QuerySet with .for_user() on every ViewSet
2
Middleware
Checks every API response for data leaks, blocks and logs violations
3
PostgreSQL RLS
Row-Level Security – even raw SQL cannot return data outside allowed units
What Was Done
Full cycle of <a href="/en/services/custom-development">custom development</a>: system architecture and DB schema, Backend (<a href="https://www.djangoproject.com/" target="_blank" rel="noopener">Django</a> REST API, WebSocket, business logic, RBAC, RLS), Frontend (React SPA with 12 modules), DevOps (Nginx, systemd, SSL, production deployment), integrations (WhatsApp bot, Google Sheets API, document generation).
17 System Modules
Dashboard & Analytics
Organizational Structure
Staff & Position Structure
Combat Strength Table
Attendance Timetable
Absent Personnel
Excluded Personnel
Irrecoverable Losses
Arrived Personnel
Document Generator
Reports & Export
Combat Journal (JBD)
Building Orders
Kanban Task Board
WhatsApp Integration
Admin Panel & Backups
Roles & Permissions (~100+)
Frequently Asked Questions
Backend: Python 3.12, Django 6, Django REST Framework, Django Channels (WebSocket), PostgreSQL 16, Redis. Frontend: React 19, TypeScript (strict mode), Vite, Ant Design, TanStack React Query, React Flow. Infrastructure: Nginx, Uvicorn (ASGI), systemd. Integrations: WhatsApp bot (Node.js), Google Sheets API, DOCX document generation.
The system implements 3 levels of data isolation: 1) Django ORM with custom QuerySet manager (.for_user()) on every ViewSet, 2) Middleware that checks every API response for data leaks, 3) PostgreSQL Row-Level Security (RLS) on all unit-scoped tables. Additionally: CSRF protection, rate limiting, VPN-only access, HTTPS, CORS strict origins.
The project consists of ~93,000 lines of code across 452 files: Backend (Python/Django) – 167 files, Frontend (TypeScript/React) – 275 files. 17 functional modules, 80+ API ViewSets, 11 Django apps. Supports real-time WebSocket updates and concurrent multi-user access.
